METINNO® Invero Flushline Cavity Slider Units

METINNO® Invero Flushline

Cavity Slider Units

Discover METINNO® Invero – cavity slider units that combine refined design with full aluminium box-frame construction, eliminating the risk of rust, rot and swelling. Backed by a sturdy aluminium head track rated to 65kg, 100kg or 150kg and a zero-clearance option that reduces the gap above the door to approximately 3mm, the unit offers a durable, practical solution for residential and commercial interiors.

METINNO® Invero Flushline eliminates the need for architraves altogether. Integrated plasterboard finishing trims create a seamless, square-set opening (no additional trim kit required) while the concealed aluminium pocket frame combines timber fixing slats with high-tensile alloy trims for secure fixing and long-term rigidity. It features a robust ball-bearing carriage and high-load-bearing mechanism to suit larger doors.

Available in a frameless glass option with all cut-outs supplied, as well as Soft-Close option and full ceiling-height option.

  • Architrave-free — integrated plasterboard trims create a square-set finish, no additional trim kit required

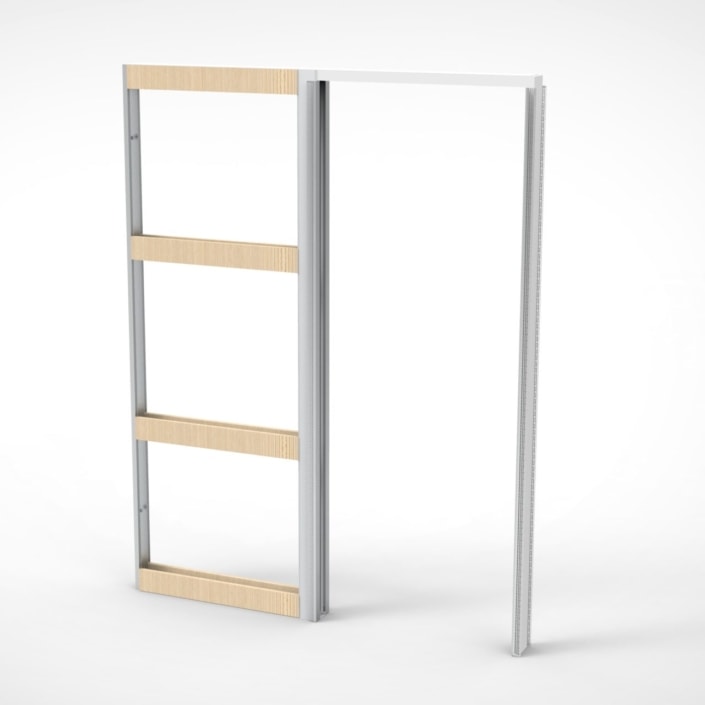

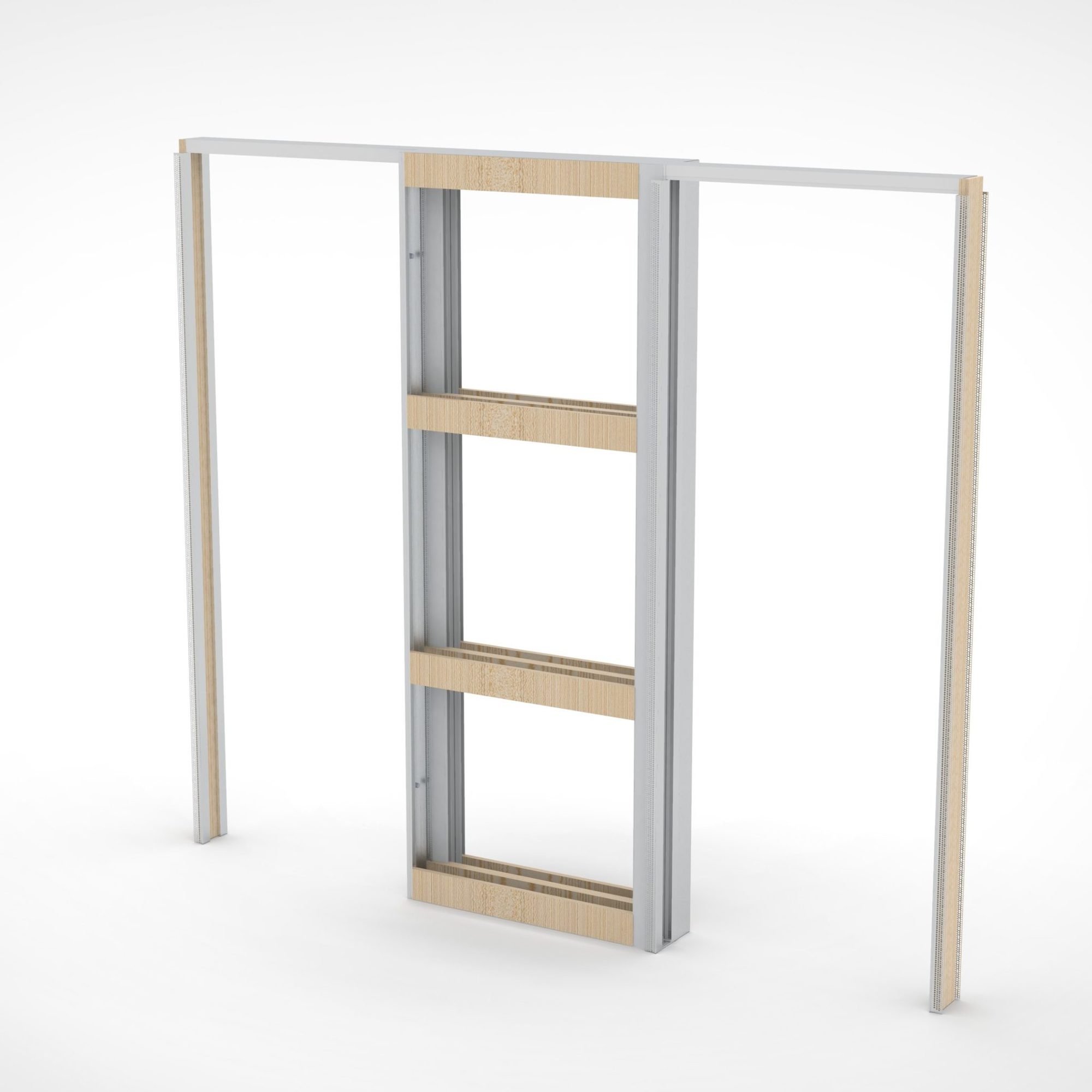

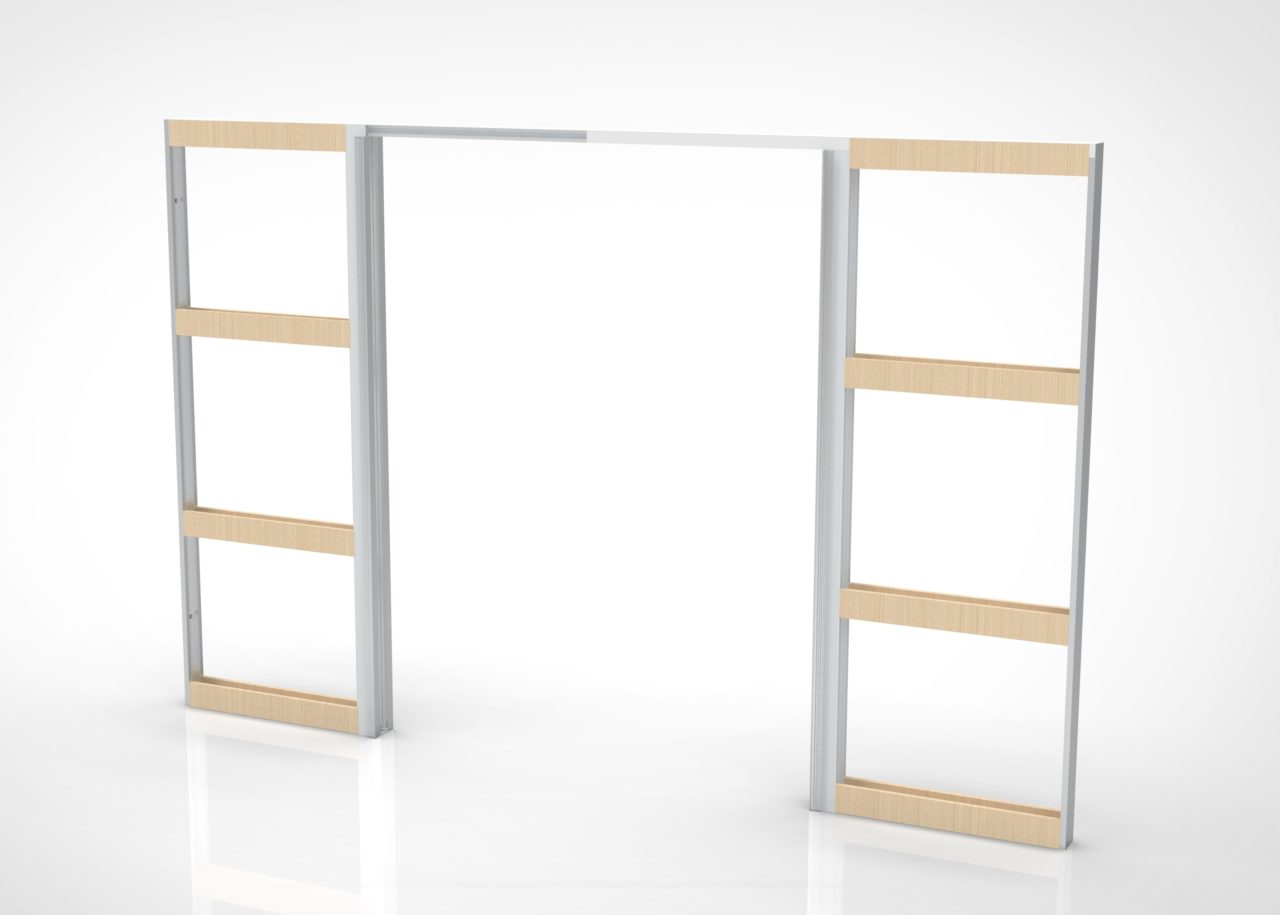

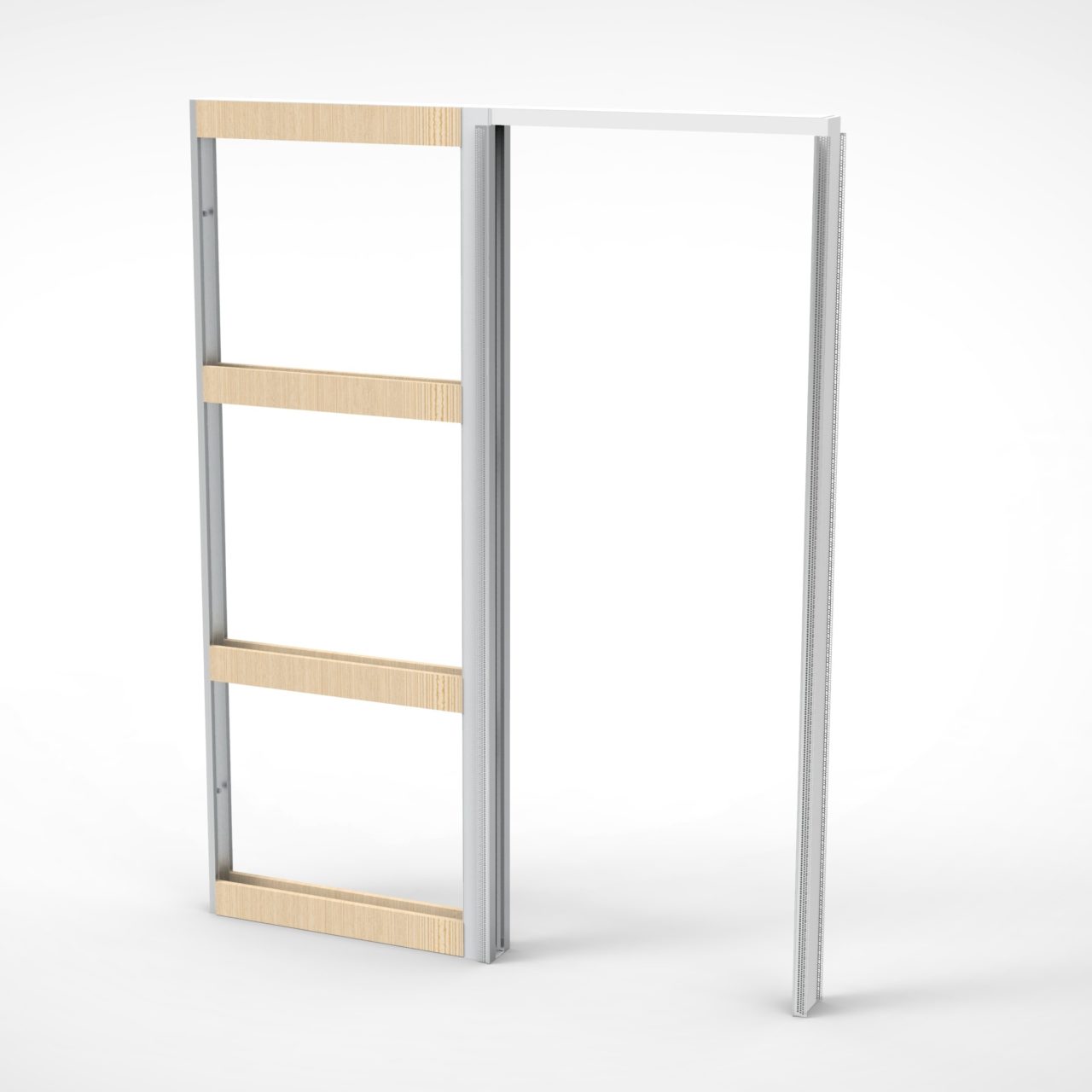

  • Concealed aluminium pocket frame combines timber fixing slats with high-tensile alloy trims for secure fixing and rigidity
  • Robust ball-bearing carriage system
  • High-load-bearing mechanism ideal for larger doors

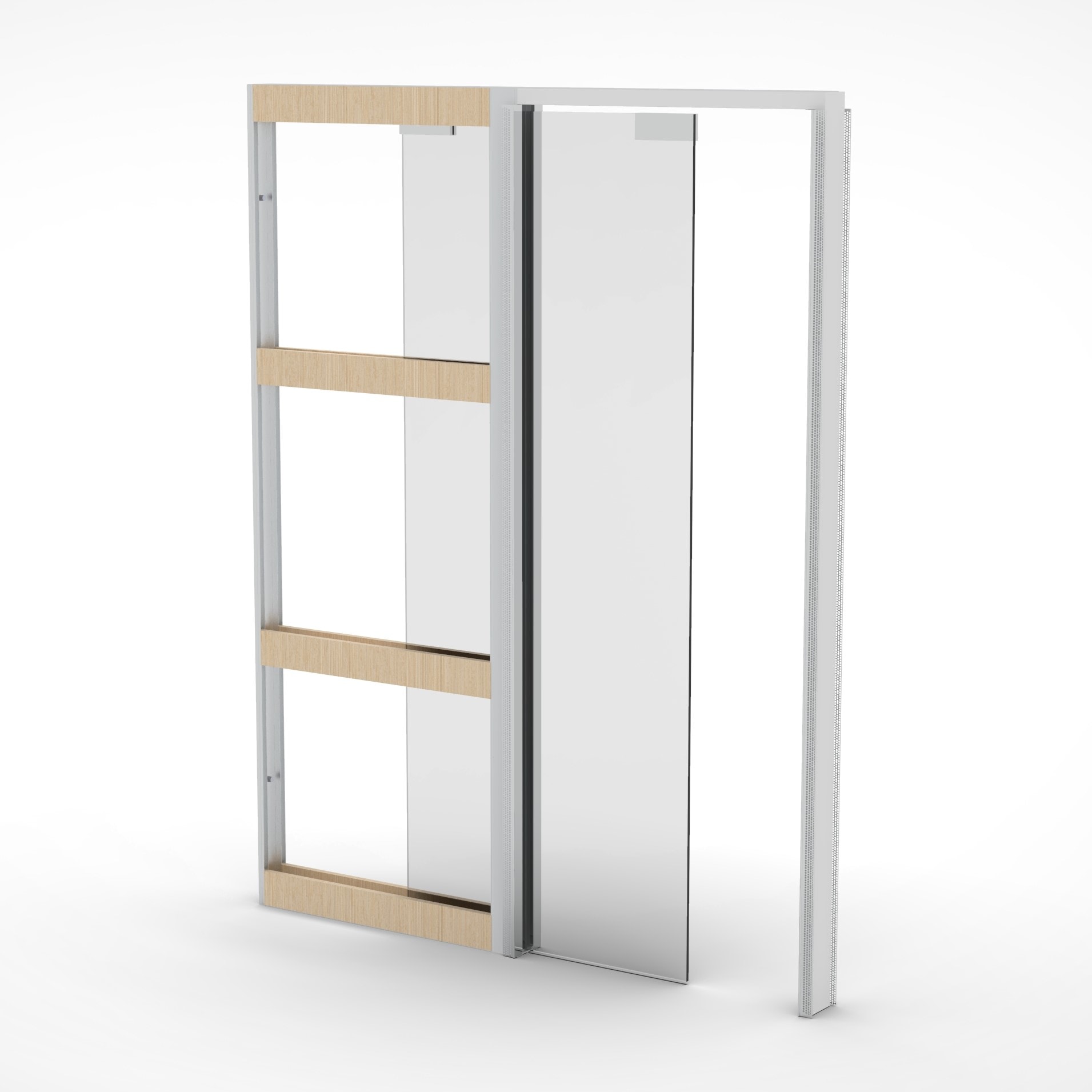

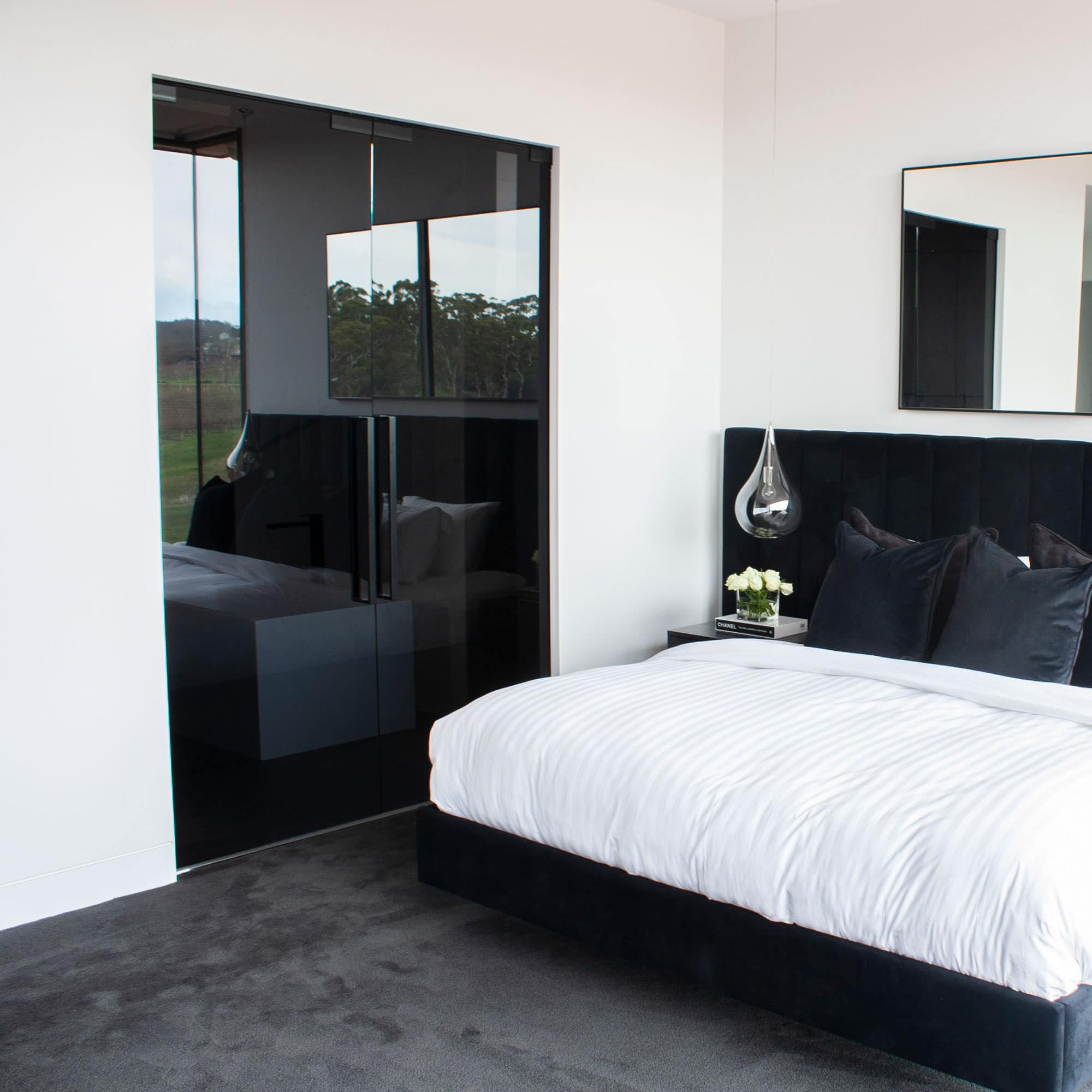

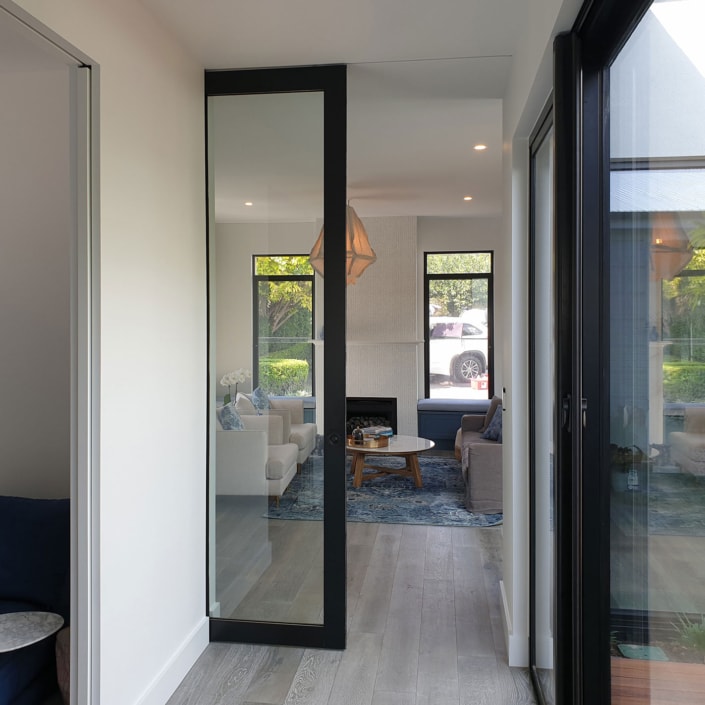

  • Frameless glass option, with all glass cut-outs provided
  • Soft-Close option available

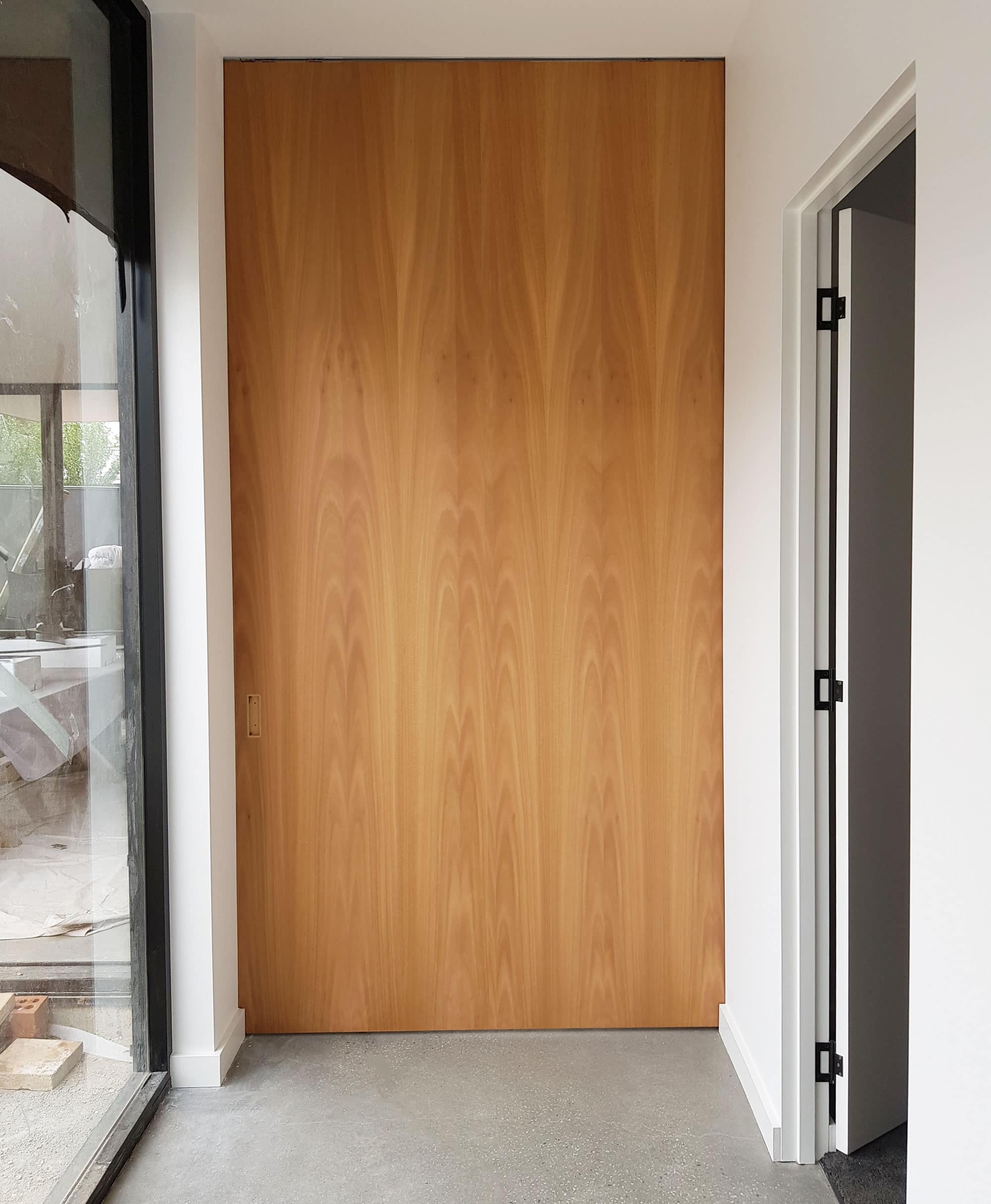

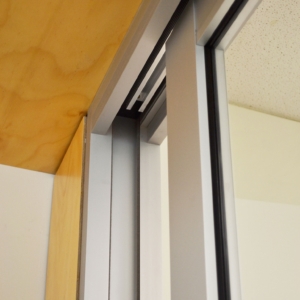

  • Full ceiling-height option available
  • Eight standard sizes held in stock
  • No pelmet required to conceal head-track components
Visible Opening FrameCavity Box ConstructionSuits Doors up to 40mm Thick (T)Suits Stud Wall Max. Door WidthMax. Door HeightMax. Door Weight

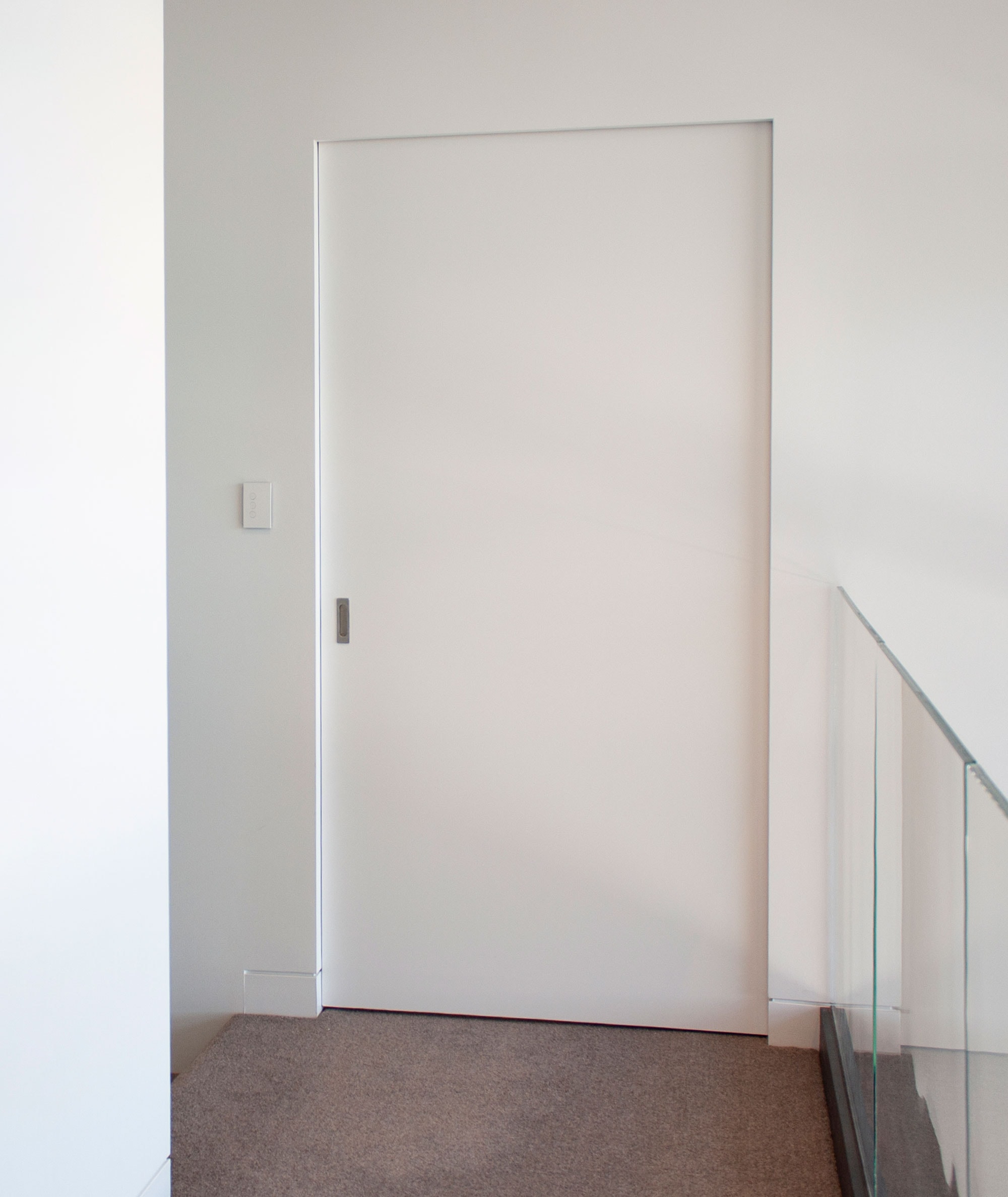

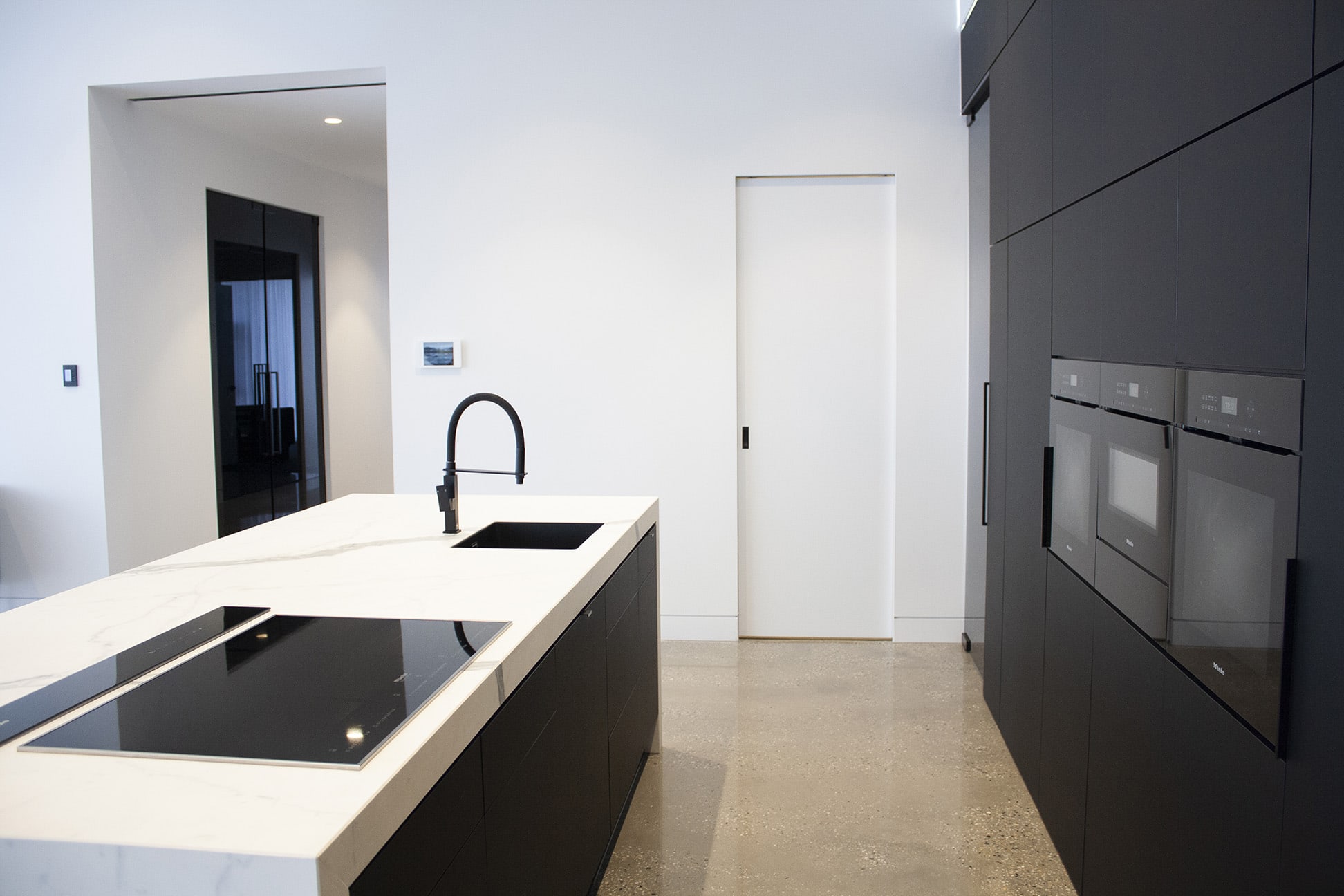

Flush – no visible frame

Includes trims & angles ready for installer to flush into wall & frame.

Aluminium frame with timber slats to attach plasterboard.• Timber

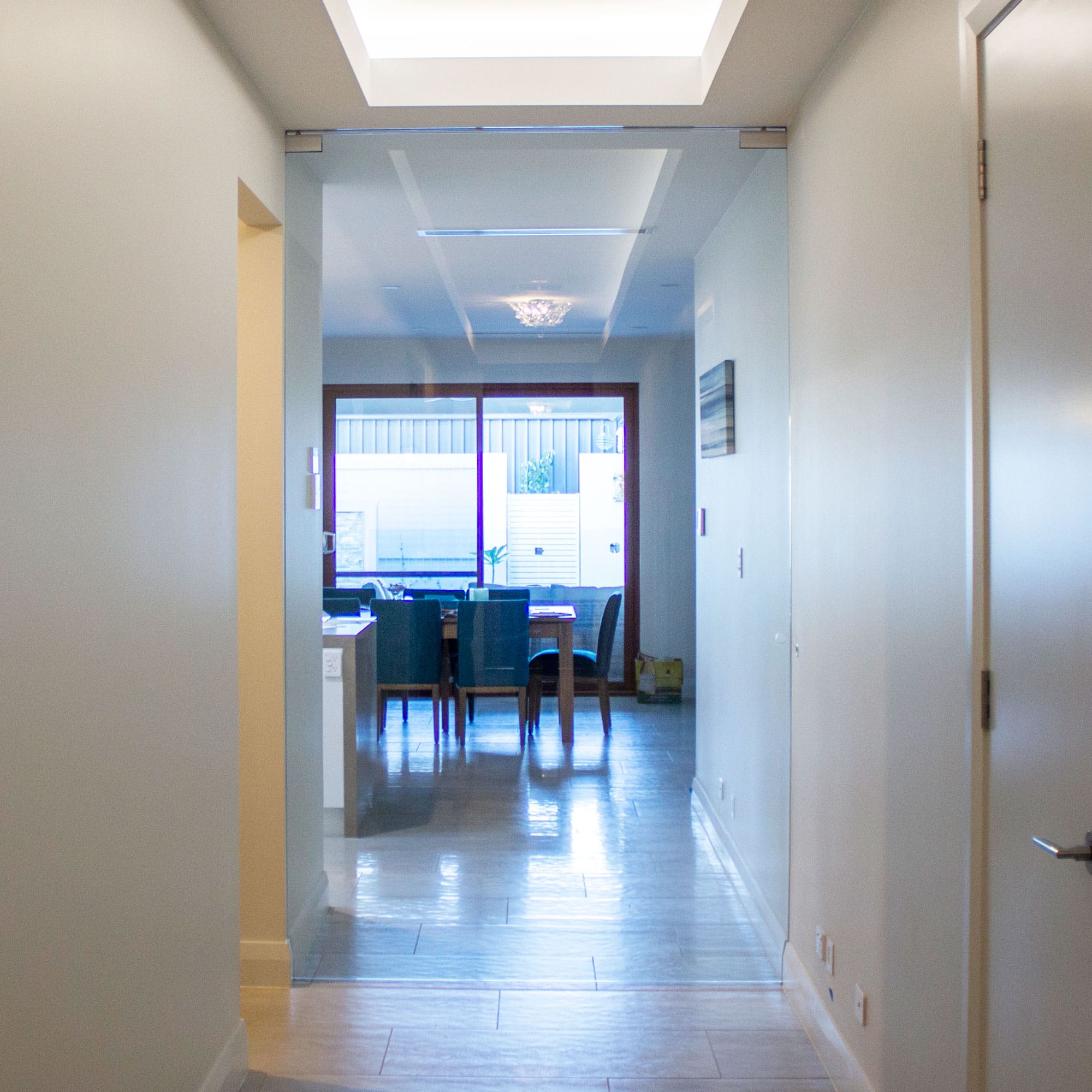

• Frameless Glass

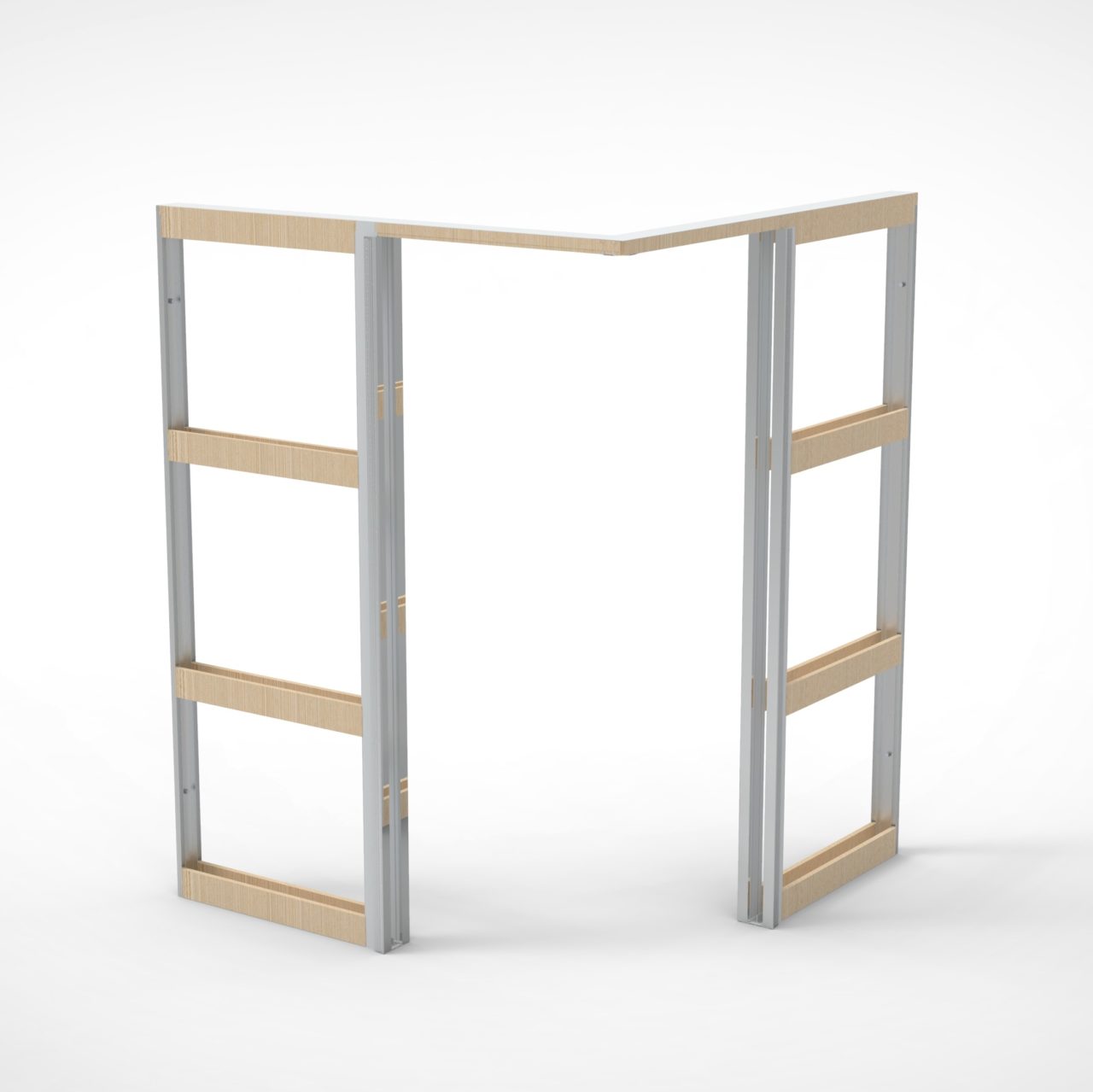

• Corner Meeting

Glazing completed on-site by customer.

92mm Stud Wall Thickness2200mm3000mmUp to:
65kg (M65)
100kg (M100)
150kg (M150)
