Hinges
Choose from a range of popular hinges to complete your project

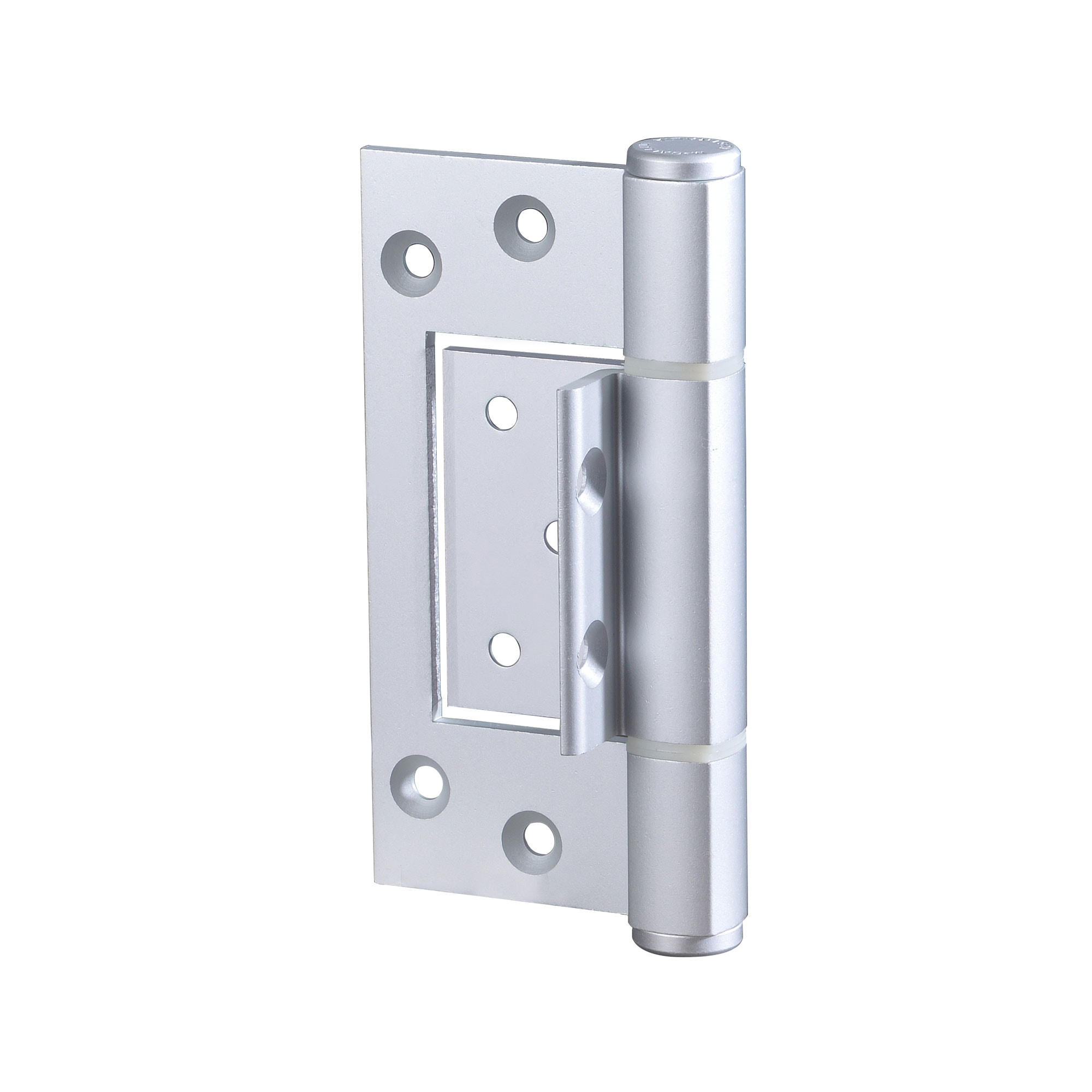

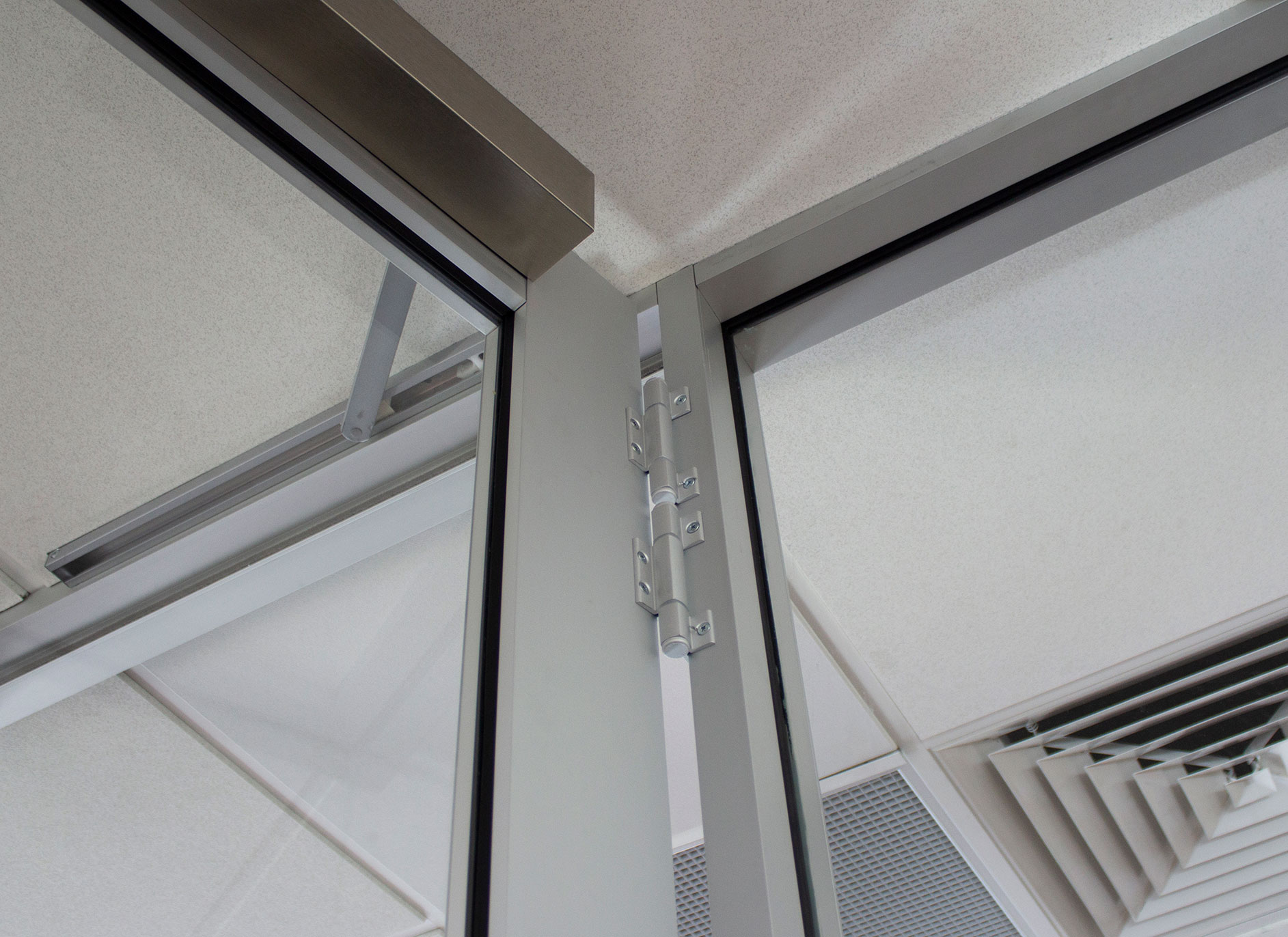

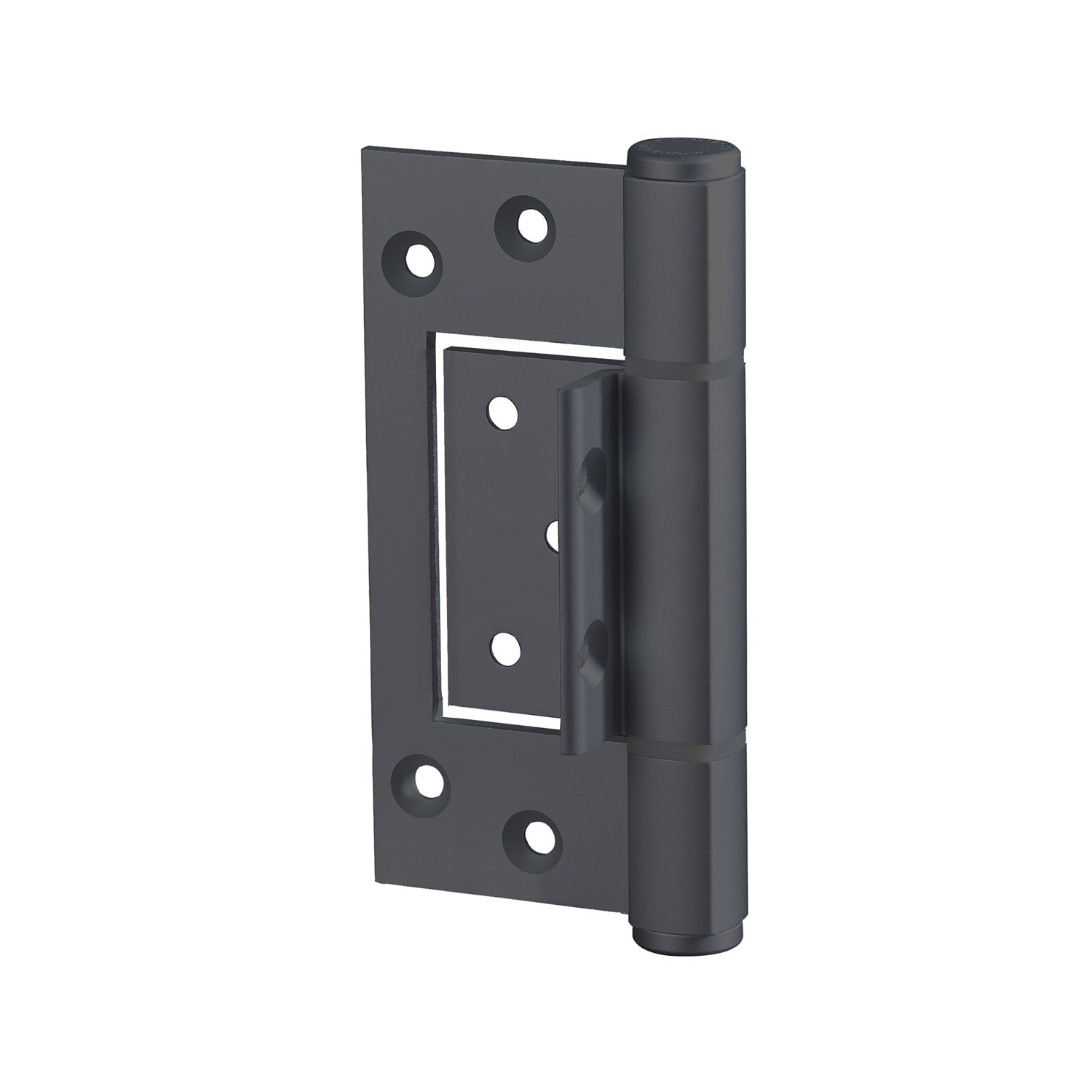

Interfold Hinge
Heavy Duty Aluminium
- Suitable for aluminium entrance doors in high usage situation
- Suitable for either centre pocket or front edge glazing systems.
- Suitable for some timber door applications.
- Pre-drilling of the holes in the timber may be required.
- Fastening screws supplied.
- Locator allows for Fast-Fixing.
- Alloy: High strength T.6 minimum tensile 254 mpa.
- Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends.
- Bushes: Flanged nylon.
- Knuckle: Squareline – Heavy Duty
- Aluminium Endcaps: Pressed-in interference fit.
- Maximum Weight Capacity: 60 kg (turn over for further information)
| Door Thickness & Hinge Qty | Alloy | Pin Dia | Max. Weight Capacity |
|---|---|---|---|
| Minimum 40mm. 3 Hinges for door up to 2300 x 900 x 60kg | High strength T.6 minimum tensile 254 mpa | 6mm 304 Stainless Steel with machined chamfer both ends | 60 kg |
