9000C Series

Centreline Glazing System

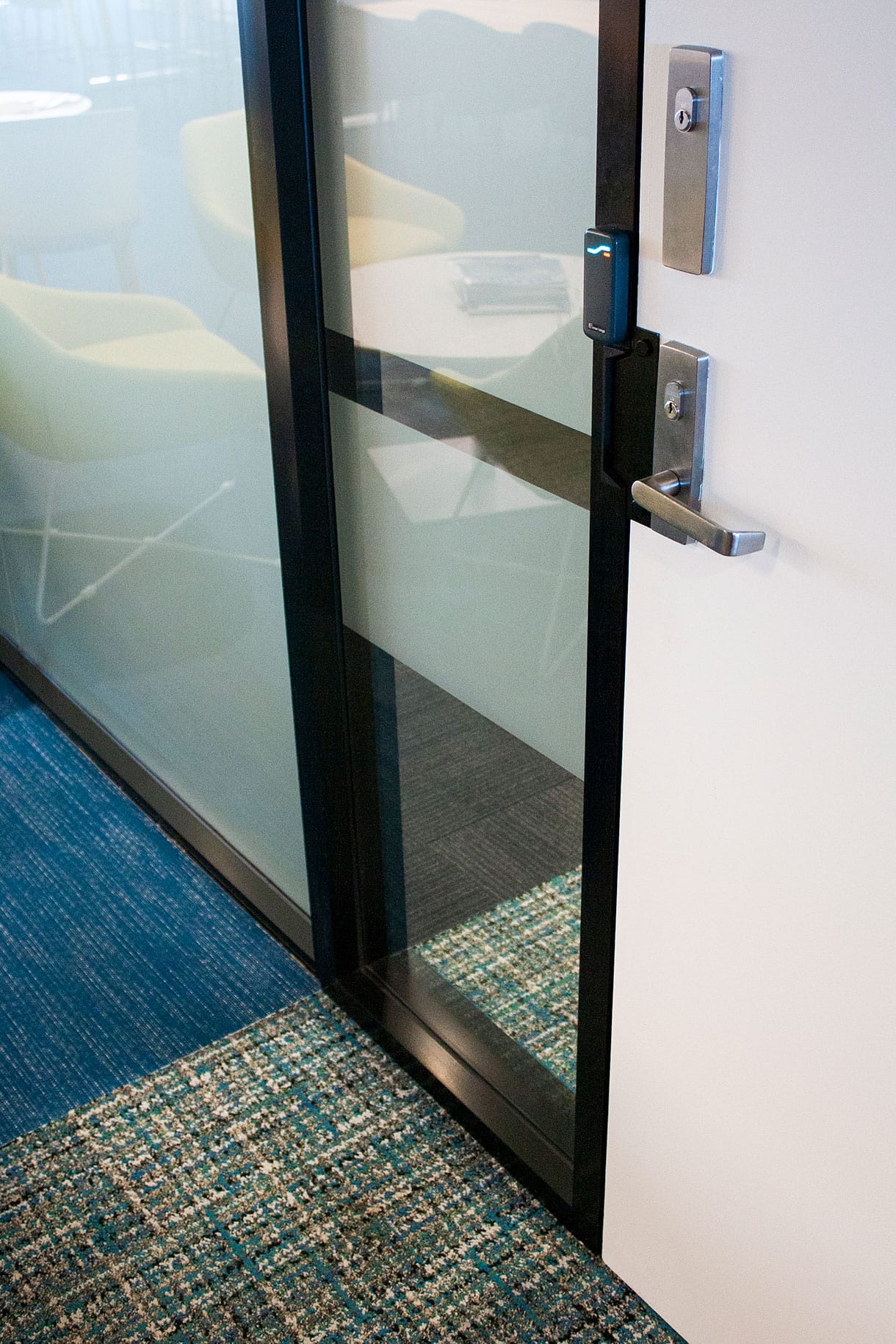

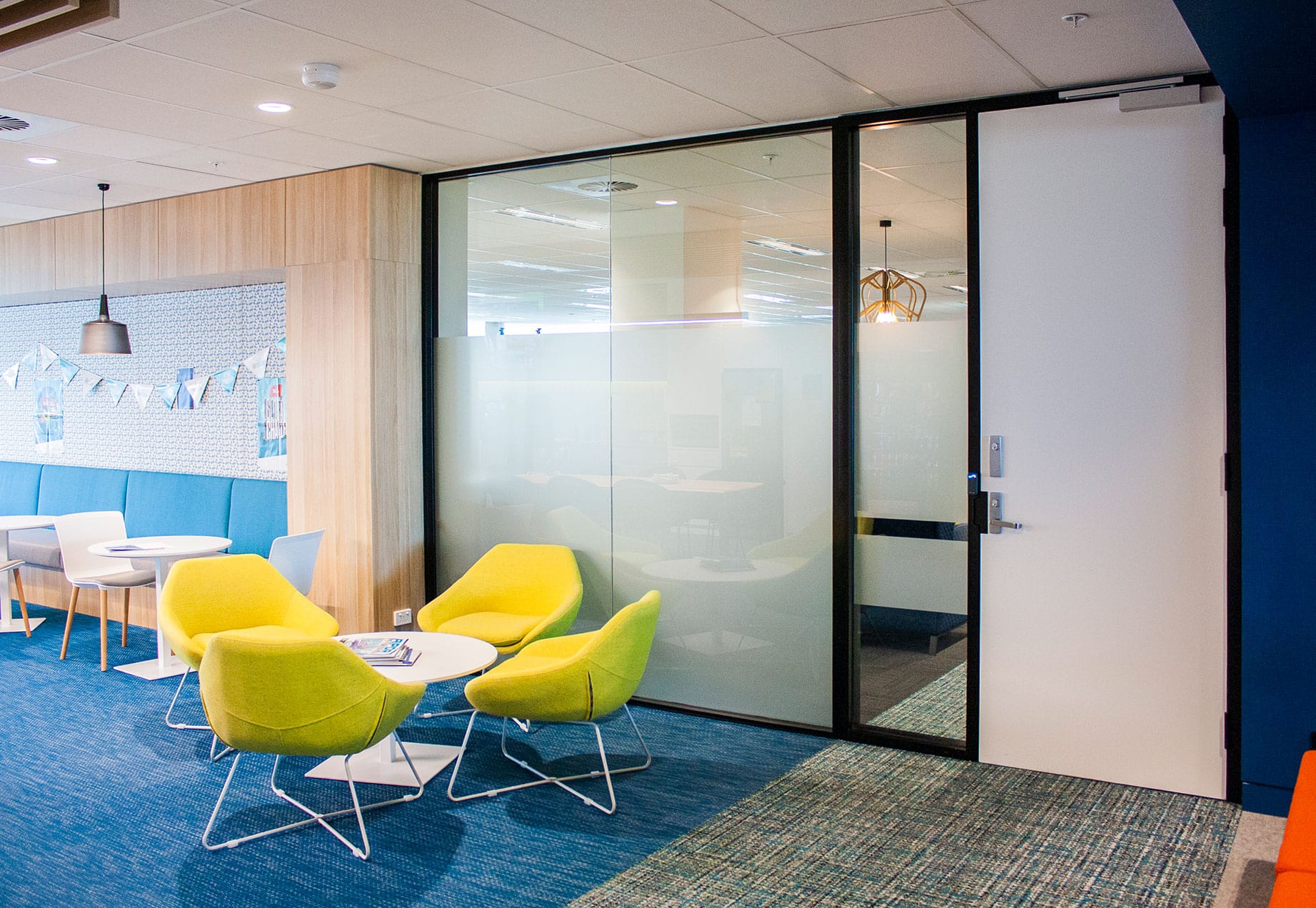

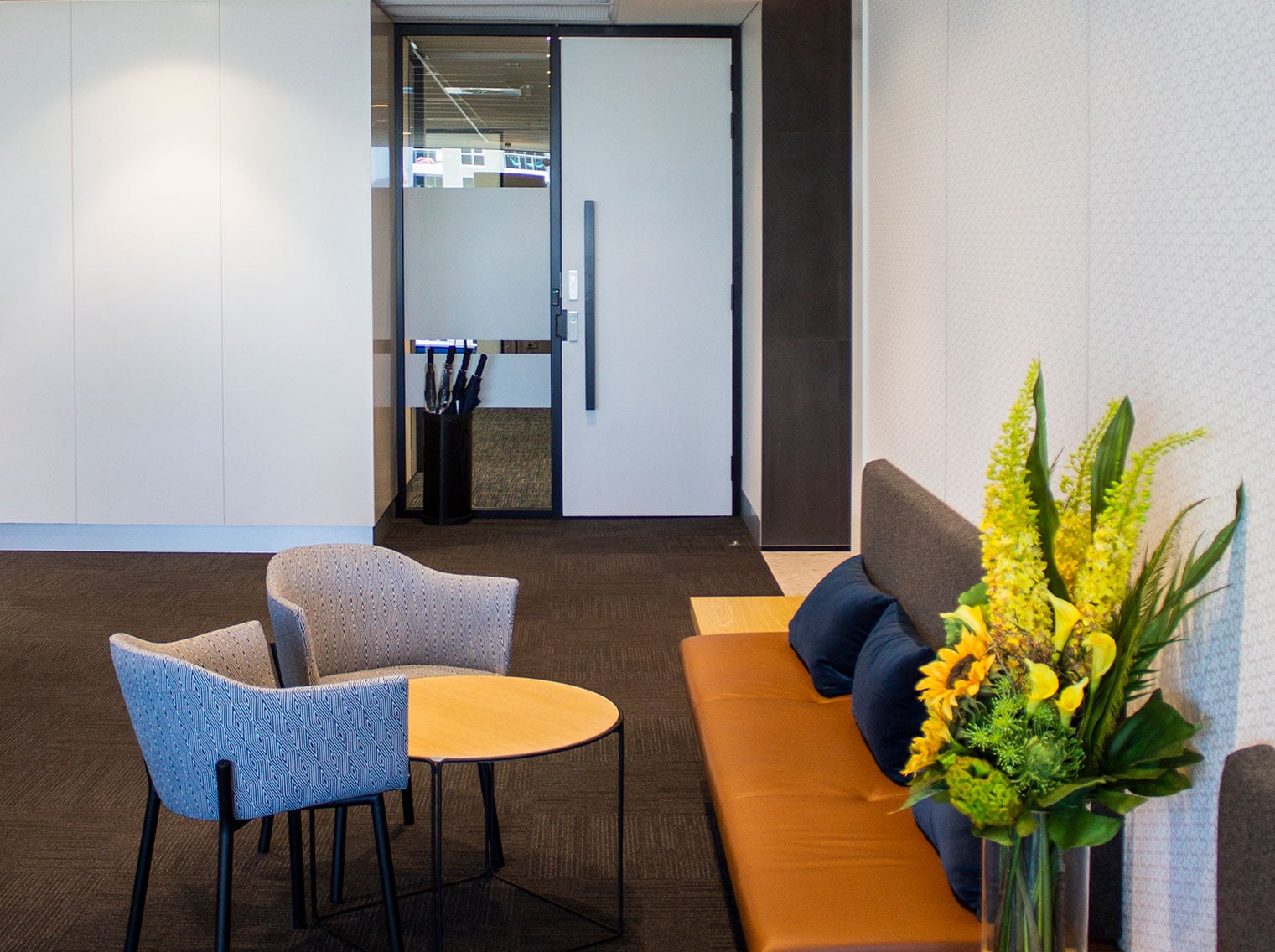

The Metinno 9000C Series system will create a distinguished office environment when utilised. The feature of this system offers centreline glazing office panels while maintaining the 45mm side profile design, seamlessly matching external glazing creating a fluent finish throughout the project. The Metinno 9000C system sections can be used with 92mm steel stud and 90mm timber stud as well as 64mm steel stud when used with two layers of 13mm plasterboard each side. There are unlimited designs that can be created when integrating the Metinno 9000C system with the Metinno 1000, 9000 and 9000D systems. Achieve a visually appealing finish with offset panels that can be constructed while still maintaining a consistent glazing detail to both sides.

  • Practical, cost efficient and aesthetically pleasing.
  • Consistent 45mm side profile with Double Glazing design.
  • Reduce noise transfer between offices.
  • Integrate with 92mm and 64mm steel stud and 13mm plasterboard.
  • Used in conjunction with the Metinno 1000, 9000 and 9000D systems, this system provides unlimited options.
  • Available in natural anodised, mill finish or powder coat to any colour.
